MS 1530 Cantilever CNC Plasma 400W Mini Plasma Cutting Machine
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SNR |
| Certification: | CE Certificate |
| Model Number: | SNR-SK |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per Month |
|
Detail Information |
|||
| Name: | Cantilever Cnc Flame Cutting Machine | Voltage: | 220V |
|---|---|---|---|
| Rated Power: | 400W | Dimension(L*W*H): | 1500*3000mm |
| Control System: | Starfire Control System SF-2100S | Cutting Mode: | Plasma Cutting+ Flame Cutting |
| Cutting Thickness: | 2-25mm(plasma),6-120mm(flame) | Motor: | Servo Motor Driver |
| THC: | Fangling F1621 | Plasma Cutting Speed: | 0-8000mm/min |
| Software: | Fastcam Software | Flame Cutting Speed: | 0-700mm/min |
| High Light: | MS 1530 Cantilever CNC Plasma,400W Mini Plasma Cutting Machine,1530 Cantilever CNC Plasma 400W |
||
Product Description
MS-1530 Cantilever Flame Head Steel Cut Portable CNC Plasma Metal Cutting Machine
1. Portable CNC cutting machine series is a high-precision portable CNC flame / plasma cutting machine
2. Its affordable, easy to use and easy to learn more accurate. Than the original cutting machine processing format larger, thicker cutting thickness.
3. For wider,High strength, durable for a long time Effectively reduce processing costs. Machine covers an area of small, fully effective
equipment to play the effectiveness.a high efficiency and high performance equipment.
Product Parameters
| Name | cantilever CNC flame cutting machine |
| Application | used for metal works |
| Motor | Servo motor |
| Input power | single phase 220V, 50/60Hz |
| Effective cutting width | 1500mm, 1800mm, 2000mm |
| Effective cutting length | 3000mm,6000mm |
| Plasma cutting speed | 0-8000mm/min |
| Flame cuting speed | 0-700mm/min |
| CNC controller | Starfire SF-2100S or Fangling F2100B |
| THC | Fangling F1621 auto torch height control for plasma |
| Cutting thickness | 2-25mm(plasma, depends on plasma source, 6-120mm(flame) |
| Rail for Y axis | HIWIN Linear rail |
| Rail for X axis | high speed two-axis rail |
| Lifter quantity | 1 pc, support both plasma & flame cutting |
| Lifting range | 0-100mm |
| Nest software | FastCAM/StarCAM/HiNest |
| Plasma source |
CHINA HUAYUAN or MISNCO or America brands 100A, 120A |

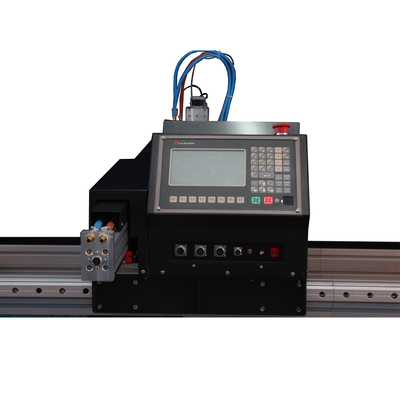

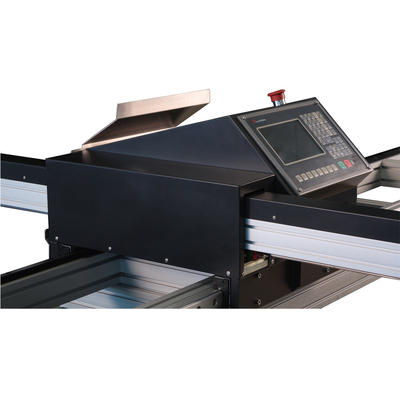

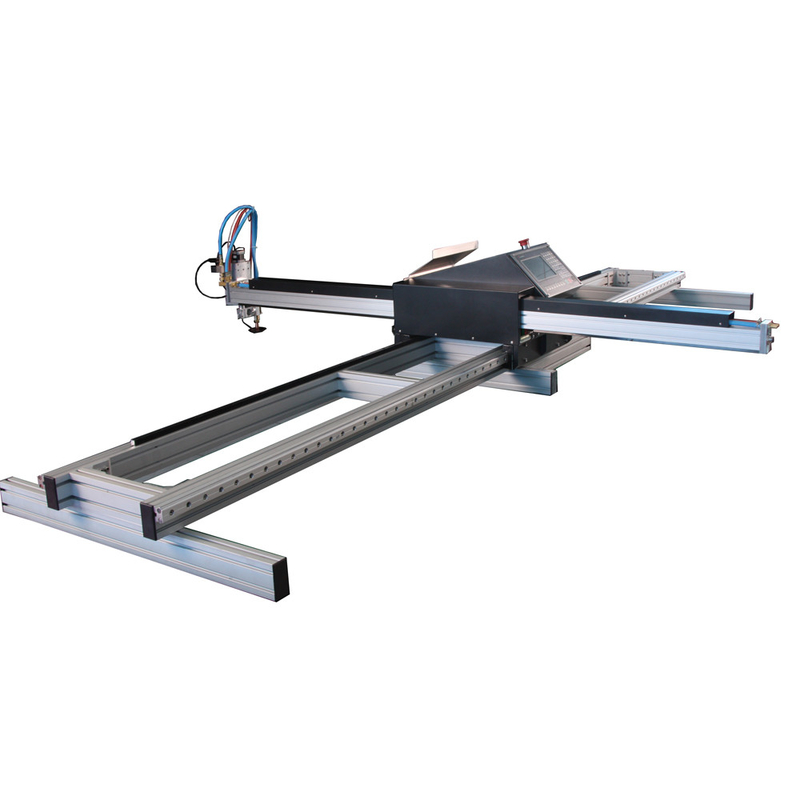

Product display
Company information
Beijing Seigniory NC Equipment Co.,Ltd is a professional manuafacturer and exporter of CNC cutting machine. we have been in this CNC filed for more than 14 years. Our main products includes portable CNC,gantry CNC, CNC plasma table for metal sheet and steel pipes.
Since the estabilsh of our company, we have been sticking to the path of specialization and had many engineering technology staff members.
Our machines are widely used in automotive manufacturing, shipbuilding, fan manufacturing,mining equipment, steel processing, advertising cutting, enginerring machiney, agricultural machinery and other machinery manufacturing industry.
So far we have exported to many countries like Russia, France, UK, Peru,, Mexico, USA, South Africa, Australia, Thailand, Malaysia, India and so on.
Our Advantage
Our Exhibition
Our certificate
Shipping & Packing
FAQ
Q1: Are you a trading company or manufacturer?
A: we are a professional manufacturer of CNC cutting machine for 14 years.
Q2: Do you accept OEM for customer’s brand?
A: yes, we can do OEM. But we need MOQ for mass production.
Q3: What’s the delivery time?
A: The delivery time depends on machine model and quantity, you can directly contact us for more information.
Q4: What’s the payment terms for a new customer?
A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in advance by T/T, the rest be paid before delivery.
Q5: What kind of package do you use?
A: Plywood case, fumigation-free.
Q6: I know nothing about this machine, what kind of machine i should choose?
A: Very easy to choose. Just tell us what you want to do by using CNC cutting machine, the cutting size and thickness, and then let us give you perfect solutions and suggestions. Feel free to contact us!
