3x12 M Steel Tailor Plasma Cnc Machine Dual Drive
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SNR |
| Certification: | CE |
| Model Number: | SNR-MX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets per month |
|
Detail Information |
|||
| Machine Name: | Plasma Cnc Cutting Machine | Machine Voltage: | AC220V,50/60Hz |
|---|---|---|---|
| Cutting Mode: | Plasma Cutting+ Flame Cutting | CNC Controller: | Fangling F2300A |
| Work Area: | 3000*12000mm, Can Be Customized | THC: | XPTHC-300PT Automatic For Plasma |
| Drive Motor: | Servo Motor, Dual Drive | Rail: | 24kg Steel Rail |
| Software: | FastCAM STD/HiNest | Transmission: | Helical Rack And Gear For Beam |
| High Light: | 3x12 m plasma cnc machine,dual drive plasma cnc machine,dual drive gantry plasma cutting machine |
||
Product Description

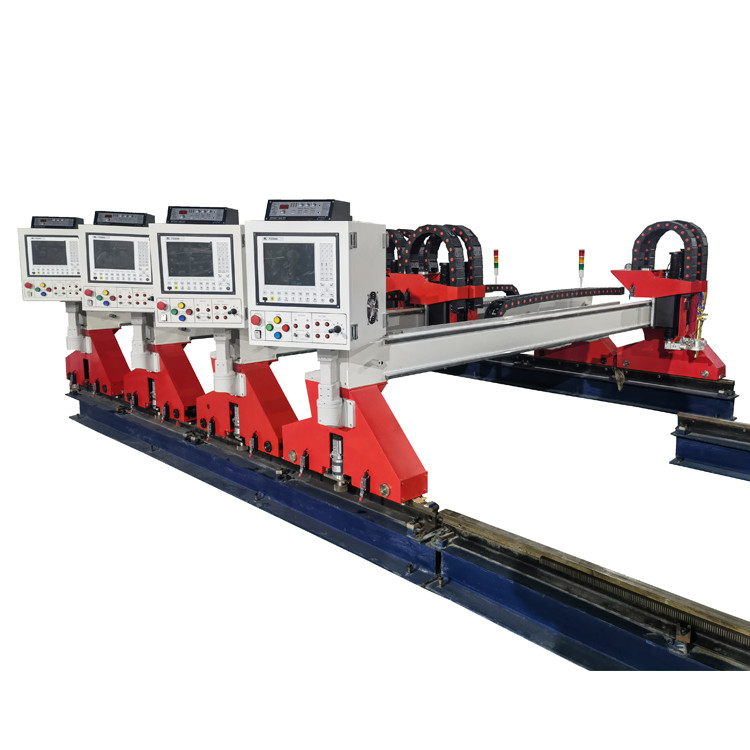

3x12 M Steel Tailor Gantry CNC Plasma Metal Steel Cutting Machine
Description
SNR-MX is high quality gantry cnc cutting machine, which independently researched and developed by our company. Compared with other ordinary gantry equipment, SNR-MX is characterized by accurate running and high precision restoration.
1. Effective cutting size 3000x8000mm, 3000x12000mm, can be customized as per client's requirements.
2. Using Shanghai Fangling 10.4 inch CNC controller F2300A
3. HYD auto torch height controller XPTHC-300-PT.
4. X axis adopts linear guide rail with higher precision.
5. X axis(beam) uses helical rack & gear.
6. Panasonic A6 series servo motor and driver 400W
7. Laser positionner is an option.
Application
It can be used to cut all kinds of metal materials as Carbon steel, stainless steel, copper alloy, aluminum alloy, titanium alloy, electrolytic plate, aluminized Steel Sheet and also insulated panel and composite materials.
Technical Parameters
| Name | steel plasma cutting machine |
| Input voltage | 220V, 50/60Hz |
| Effective cutting width | 0-3000mm, can be customized |
| Effective cutting length | 0-12000mm, can be customized,like12000mm |
| Drive motor | Servo motor |
| Drive mode | Dual drive |
| Reducer | ZHONGDA high precision planetary reducer |
| Guide rail for longitudinal direction | 24 kg steel rail |
| Rail for gantry beam | linear rail, with high precision |
| CNC control system | Fangling F2300A |
| THC | HYD XPTHC-300-PT auto torch height control for plasma |
| Transmission | Helical rack and gear for gantry beam |
| Lifter | one pc with two torch holders, can install both plasma and flame torch |
| Max speed | 12M/min |
| Auto ignition for flame | optional |
| Anti-collision device for plasma | yes |
| Nest software | FastCAM/StarCAM/HiNest |
| Plasma source | CHINA brand HUAYUAN or MISNCO/ American brand |
Packing & Shipping
FAQ
Q1: Are you a trading company or manufacturer?
A: we are a professional manufacturer of CNC cutting machine for 14 years.
Q2: Do you accept OEM for customer’s brand?
A: yes, we can do OEM. But we need MOQ for mass production.
Q3: What’s the delivery time?
A: The delivery time depends on machine model and quantity, you can directly contact us for more information.
Q4: What’s the payment terms for a new customer?
A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in advance by T/T, the rest be paid before delivery.
Q5: What kind of package do you use?
A: Plywood case, fumigation-free.
Q6: I know nothing about this machine, what kind of machine i should choose?
A: Very easy to choose. Just tell us what you want to do by using CNC cutting machine, the cutting size and thickness, and then let us give you perfect solutions and suggestions. Feel free to contact us!
